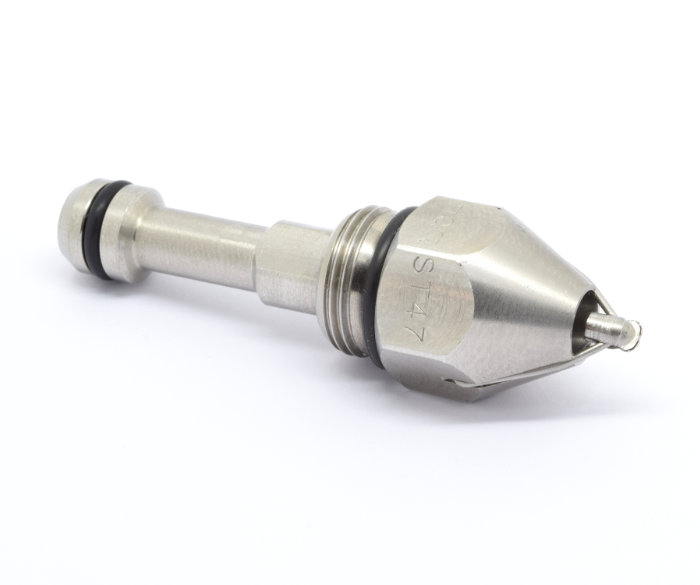

The ST47 delivers approximately 20 litres per hour in a focused candle shaped spray pattern. It is well suited to demanding dust suppression applications where both high output and directional control are required. As with all forward projecting models in the Sonicom range, it is also suitable for humidification in ducted or enclosed environments.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 3.76 lts/sec (8.0 cfm) @ 5 bar |
| Liquid Flow Rate: | nom 20 lts/hr @ 1 bar |
| Droplet Size: | 5 - 20 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Droplet Size micron |
| 6.0 | 4.3 | 1.0 | 19.0 | 10 |
| 5.5 | 4.1 | 0.8 | 17.1 | 10 |
| 5.0 | 3.8 | 0.6 | 13.0 | 10 |
| 4.5 | 3.5 | 0.4 | 10.3 | 8 |
| 4.0 | 3.4 | 0.3 | 9.7 | 8 |
| 3.5 | 3.3 | 0.2 | 8.1 | 5 |
| 5.0 | 3.8 | 1.2 | 31.0 | 15 |
| 5.0 | 3.8 | 1.0 | 24.7 | 10 |
| 5.0 | 3.8 | 0.8 | 18.0 | 10 |
| 5.0 | 3.8 | 0.6 | 13.0 | 10 |

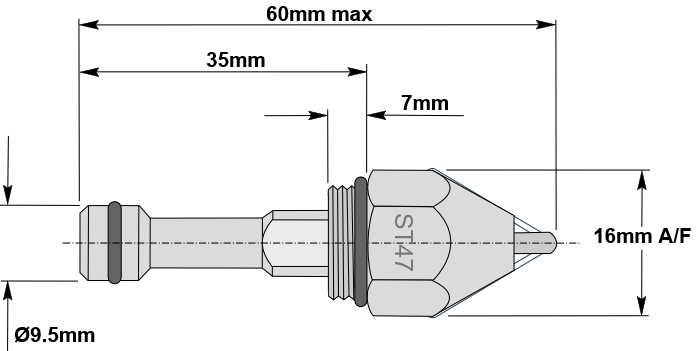

Dimensions
