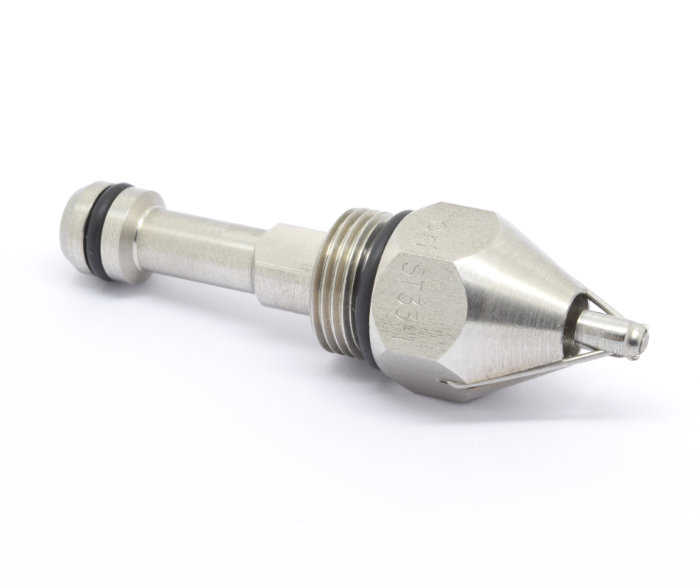

The ST33 is the highest flow model in the forward projecting range, delivering approximately 40 litres per hour in a focused candle shaped spray pattern. It is well suited to demanding dust suppression applications where both maximum output and directional control are required. As with all forward projecting models in the Sonicom range, it is also suitable for humidification in ducted or enclosed environments.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 1.84 lts/sec (3.9 cfm) @ 5 bar |
| Liquid Flow Rate: | nom 10 lts/hr @ 1 bar |
| Droplet Size: | 3 - 10 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Spray Angle degrees |
| 5.4 | 5.28 | 3.20 | 94 | 20 |
| 3.8 | 4.40 | 1.30 | 57 | 15 |
| 3.3 | 4.15 | 0.56 | 38 | 10 |
| 3.0 | 3.96 | 0.28 | 28 | 10 |
| 2.6 | 3.77 | 0.00 | 19 | 5 |

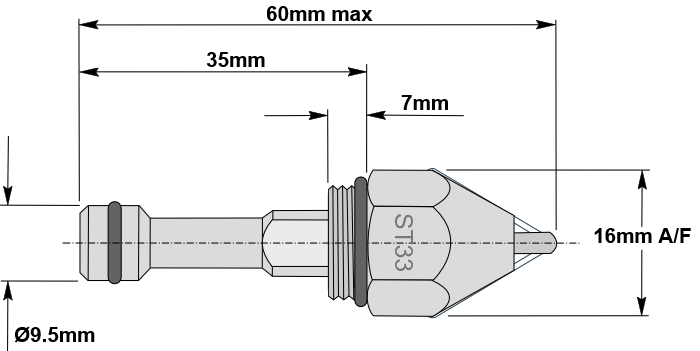

Dimensions
