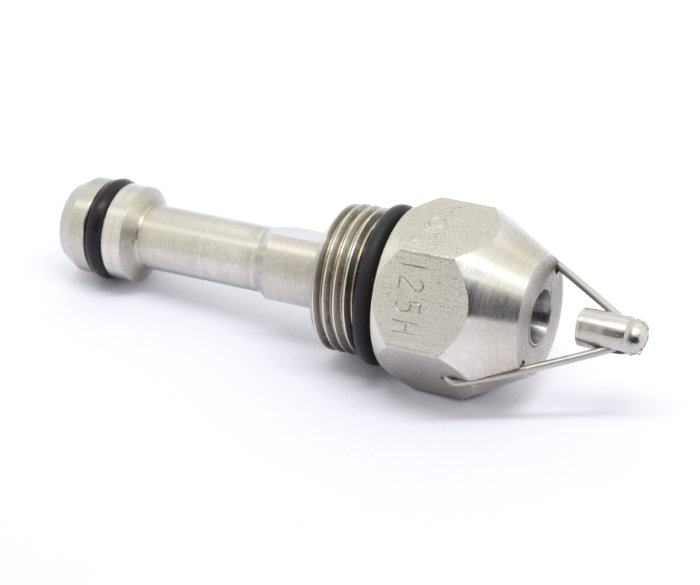

The 125H is the highest flow model in the wide angle range, delivering approximately 40 litres per hour. Its broad bow tie spray pattern makes it well suited to large area humidification installations where maximum output and even distribution are both required. It is equally applicable to dust suppression in large open or elevated spaces where wide coverage and high flow are needed.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 7.08 lts/sec (15 cfm) @ 5 bar |
| Liquid Flow Rate: | nom 40 lts/hr @ 1 bar |
| Droplet Size: | 25 - 65 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Droplet Size micron |
| 1.4 | 3.17 | 0.00 | 3.8 | 55° |
| 1.5 | 3.33 | 0.00 | 7.6 | 62° |
| 1.8 | 4.00 | 0.10 | 15.1 | 60° |
| 2.0 | 4.33 | 0.25 | 23.0 | 60° |
| 3.7 | 7.00 | 0.55 | 23.0 | 105° |
| 4.2 | 8.00 | 0.86 | 30.0 | 100° |
| 4.0 | 7.67 | 0.96 | 38.0 | 105° |
| 3.9 | 7.33 | 1.20 | 45.0 | 98° |

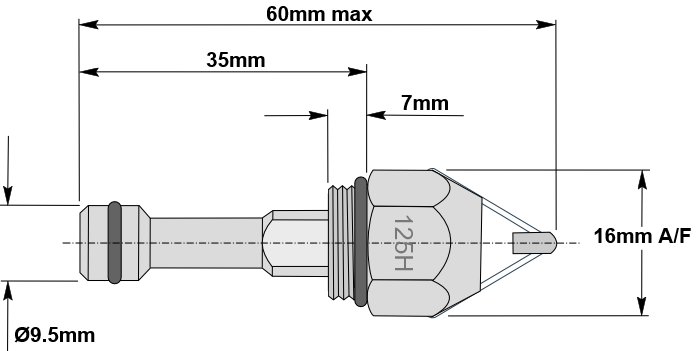

Dimensions
