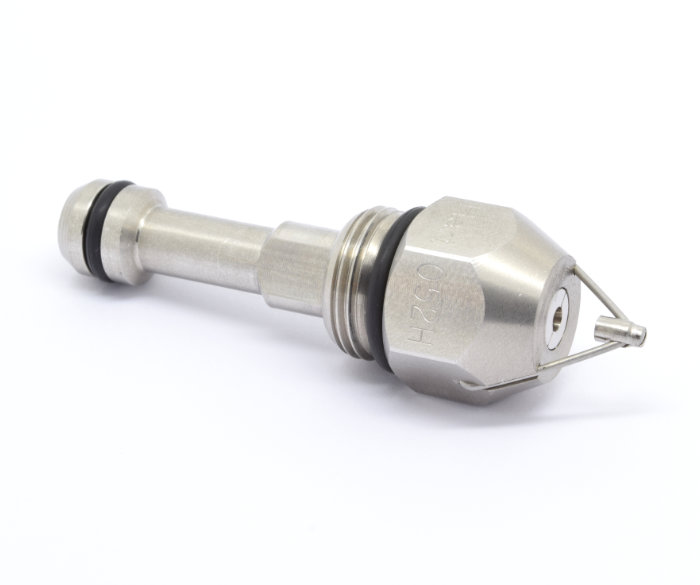

The 052H nozzle is a wide angle model delivering approximately 8 litres per hour. Its bow tie spray pattern provides broad, even coverage making it a versatile choice for humidification systems in medium to large spaces. It is also suitable for dust suppression in roof areas or other elevated positions where wide angle distribution is an advantage.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 1.84 lts/sec (3.9 cfm) @ 5 bar |
| Liquid Flow Rate: | nom 8 lts/hr @ 1 bar |
| Droplet Size: | 3 - 8 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Spray Angle degrees |
| 4.6 | 1.32 | 0.49 | 0.95 | 70° plume |
| 4.8 | 1.38 | 0.56 | 1.50 | 70° plume |
| 5.3 | 1.46 | 0.77 | 1.90 | 75° plume |
| 5.6 | 1.60 | 0.98 | 3.80 | 93° plume |
| 5.6 | 1.64 | 1.27 | 7.60 | 120° hollow |
| 5.6 | 1.83 | 1.90 | 11.30 | 145° hollow |
| 6.3 | 2.00 | 2.50 | 15.00 | 127° hollow |
| 7.0 | 2.16 | 3.20 | 17.00 | 93° plume |

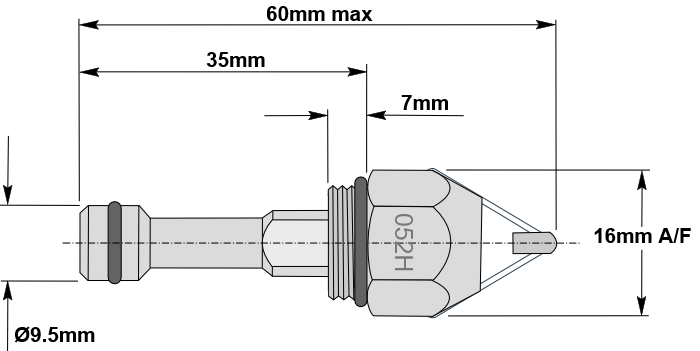

Dimensions
