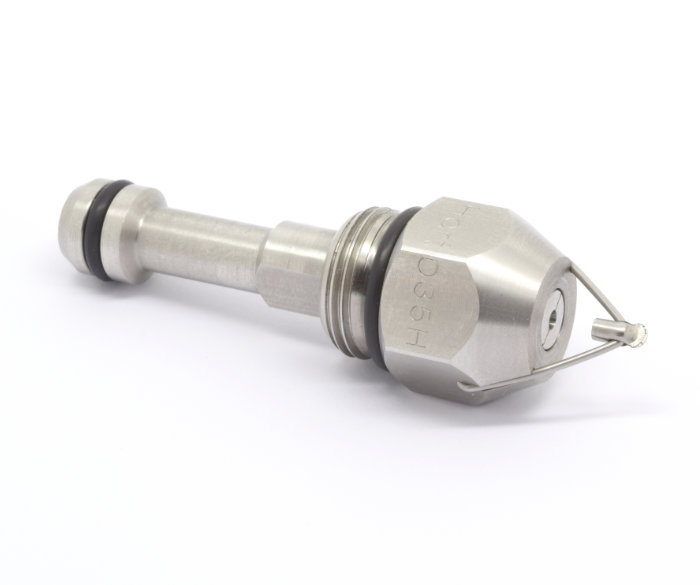

The 035H nozzle produces a wide angle bow tie spray pattern and delivers approximately 3 litres per hour of atomised liquid. It is well suited to humidification applications where fine, evenly distributed coverage is required across an open area. It can also be used for dust suppression in open or overhead areas where broad coverage is needed.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 0.8 lts/sec (1.7 cfm) @ 5 bar |
| Liquid Flow Rate: | nom 3 lts/hr @ 1 bar |
| Droplet Size: | 1 - 5 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Spray Angle degrees |
| 3.1 | 0.52 | Suction | 0.57 | 55° |
| 3.2 | 0.52 | Suction | 1.2 | 80° |
| 3.2 | 0.47 | Suction | 1.8 | 80° |
| 3.2 | 0.47 | 0.21 | 2.4 | 80° |
| 3.5 | 0.52 | 0.35 | 3.0 | 90° |
| 3.5 | 0.57 | 0.49 | 3.6 | 90° |
| 3.6 | 0.62 | 0.70 | 4.2 | 90° |
| 3.9 | 0.62 | 0.98 | 4.8 | 90° |
| 4.2 | 0.65 | 1.20 | 5.4 | 105° |
| 4.6 | 0.68 | 1.60 | 6.0 | 105° |
| 4.9 | 0.75 | 1.80 | 6.6 | 95° |

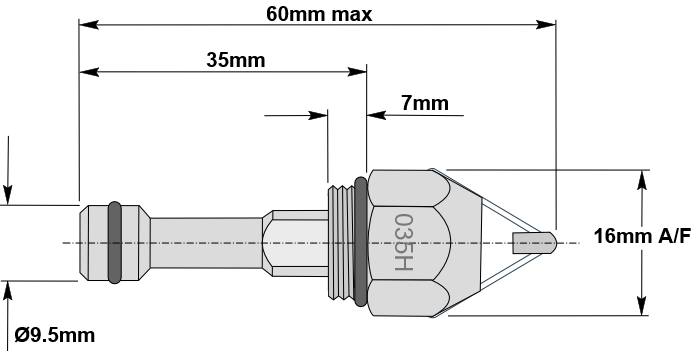

Dimensions
