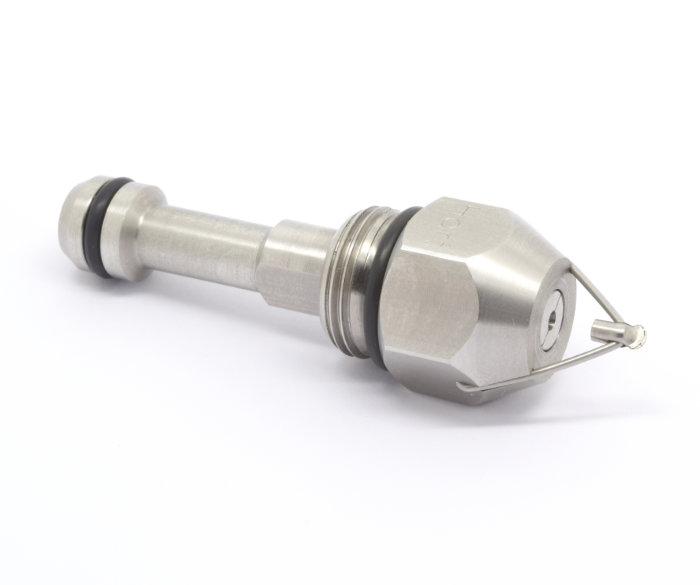

The 022H nozzle is the lowest flow model in the Sonicom range, delivering approximately 2 litres per hour of atomised liquid. It produces a wide angle bow tie spray pattern, making it well suited to humidification applications where fine, evenly distributed coverage is required across an open area. Its compact output makes it ideal for smaller spaces or installations where precise control of humidity levels is important.
Technical Data
| Nominal Data | |
|---|---|
| Air Flow Rate: | 0.35 lts/sec (0.75 cfm) @ 3.5 bar |
| Liquid Flow Rate: | nom 2 lts/hr @ 0.7 bar |
| Droplet Size: | 1 - 2 micron | Material |
| Body: | 303 Stainless Steel |
| Resonator Wire: | 302 Stainless Steel |
| Seals: | Viton - Silicone Optional |
| Weight: | 30 grams |
Flow Rates
| Air Pressure bar |
Air Rate litres/sec |
Water Pressure bar |
Water Flow litres/hr |
Droplet Size microns |
Spray Pattern |
| 4.1 | 0.38 | 1.0 | 2.9 | 2 | Fan |
| 3.1 | 0.35 | 0.9 | 2.8 | 2 | Candle |
| 2.8 | 0.33 | 0.7 | 1.9 | 2 | Candle |
| 2.4 | 0.28 | 0.5 | 1.0 | 1 | Candle |
Dimensions
